091012-001 Measuring Strength of Araldite Epoxy glue
Date 12th October 2009
Tested by GK
Location Sydney, Australia
Test Procedure Standard 1cm x 1cm glue strength test
References N/A


  • To measure the strength of Araldite 5-minute 2 part epoxy glue using the standard 1cm x 1cm test on PET plastic.

Experiment Setup

The samples were lightly sanded before gluing. The samples were allowed to fully cure for 3 weeks. The standard procedure was used to measure the strength of the glue. Five samples were tested altogether.


Araldite glue tested

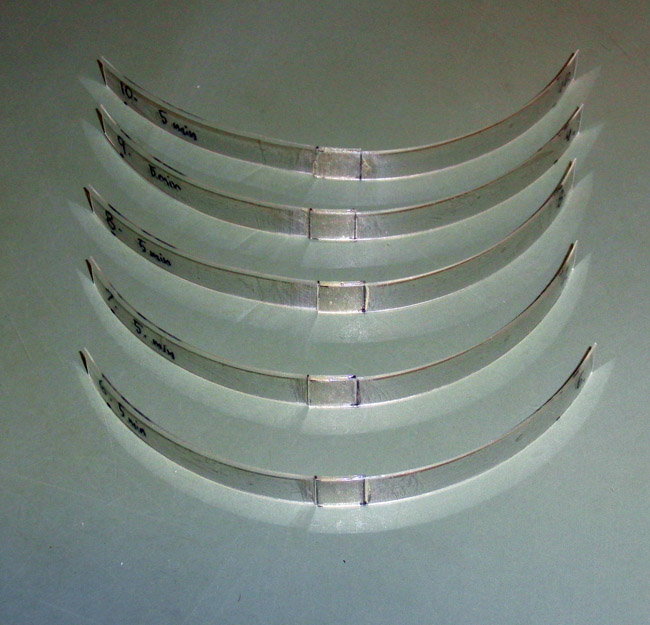

Samples before testing

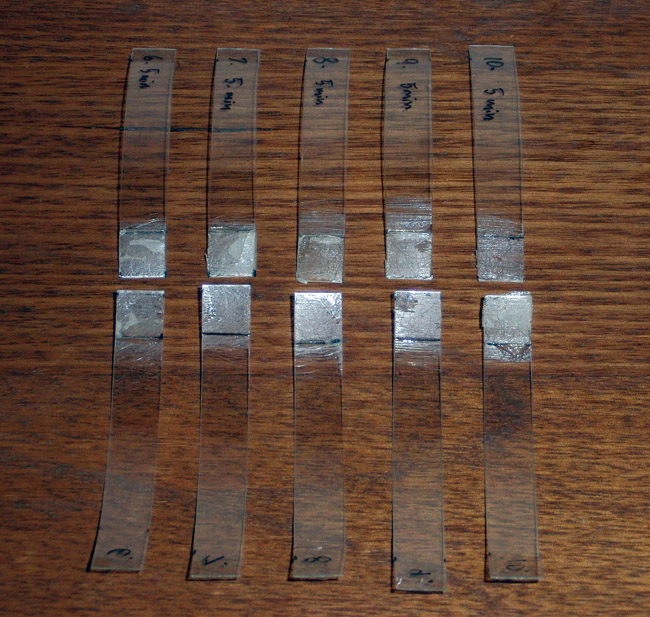

Samples after testing

The following results were obtained from the experiment:

Sample Breaking Weight (Kg)
1 < 15
2 6.2
3 5.85
4 6.8
5 5.4
Average 6.06

Conclusions / Analysis

  • It was quite evident from examining the failed joints that it was the glue not bonding well to the PET plastic. Sample #1 failed as an initial 15kg weight was added before starting to pour the water into the container.
  • The strength of the 5 minute epoxy was ~1/5th of the super strength epoxy!
  • This glue is not a good candidate for splicing bottles.
