PC_1250_001 - 1.25L bottle

Description

A 1.25L bottle with straight sides. Suitable for splicing and nosecones.

Images

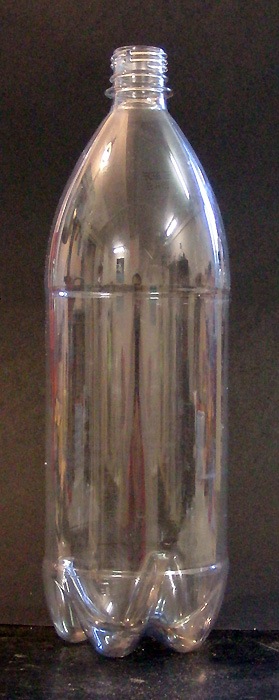

Common 1.25L bottle.

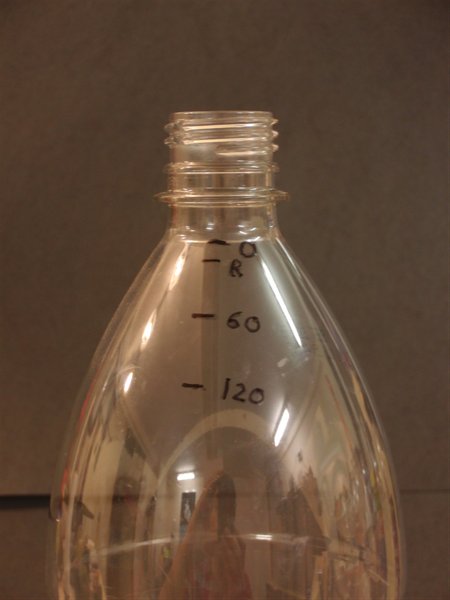

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 185 psi Averaged value from experiments
(180, 185 & 190psi):
061008_001
091114_001
Capacity
volume 1250 mL Labelled 090906_001
  1292 mL Actual - unpressurised 090906_001
  +25 mL @ 60 psi 090920_001
  +70 mL @ 120 psi 090920_001
  +5 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 40 grams No label, cap or cap ring 090906_001
Dimensions
height 284 mm Unpressurised 090906_001
  +1 mm @ 60 psi 090920_001
  +2.5 mm @ 120 psi 090920_001
diameter (OD) 87.5 mm Unpressurised (middle) 090906_001
  88.3 mm @ 60 psi (middle) 090920_001
  89.1 mm @ 120 psi (middle) 090920_001
circumference 280 mm Unpressurised (top) 090906_001
  275 mm Unpressurised (middle) 090906_001
  283 mm Unpressurised (bottom) 090906_001
  +2.5 mm @ 60 psi (middle) 090920_001
  +5 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
Manufacturer

Related Information
