PC_2000_002 - 2L bottle

Description

A 2L bottle with straight sides. Suitable for splicing and nosecones.

Images

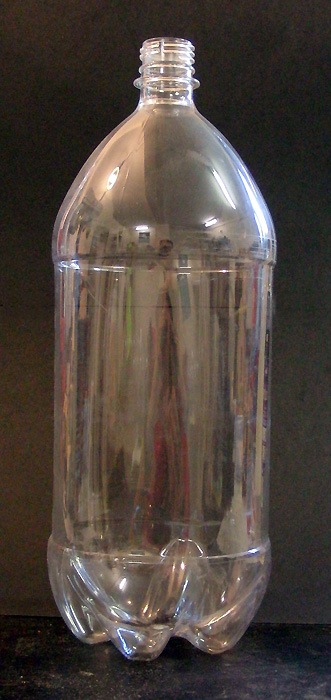

A standard 2L bottle.

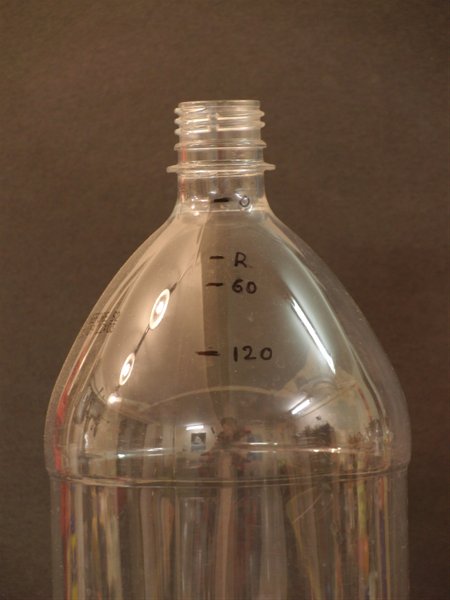

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 160 psi Averaged value from experiment:  091114_001
Capacity
volume 2000 mL Labelled 090906_001
  2026 mL Actual - unpressurised 090906_001
  58 mL @ 60 psi 090920_001
  170 mL @ 120 psi 090920_001
  27 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 51 grams No label, cap or cap ring 090906_001
Dimensions
height 298 mm Unpressurised 090906_001
  +1.5 mm @ 60 psi 090920_001
  +4.5 mm @ 120 psi 090920_001
diameter (OD) 109.2 mm Unpressurised (middle) 090906_001
  110 mm @ 60 psi (middle) 090920_001
  111.7 mm @ 120 psi (middle) 090920_001
circumference 351 mm Unpressurised (top) 090906_001
  343 mm Unpressurised (middle) 090906_001
  351 mm Unpressurised (bottom) 090906_001
  +2.5 mm @ 60 psi (middle) 090920_001
  +8 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
Manufacturer
