PC_2000_004 - 2L Bottle

Description

A 2L bottle with straight sides. The lower section of the bottle is ridged. The neck is straight.

Images

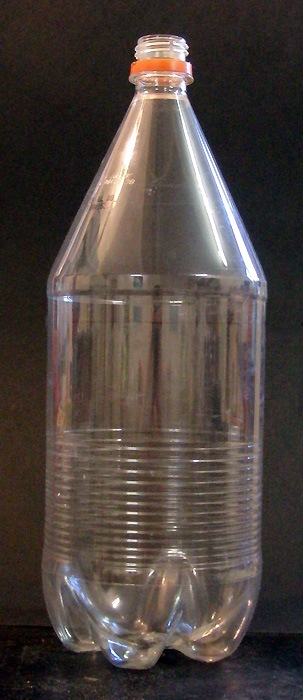

2L bottle with a conical neck.

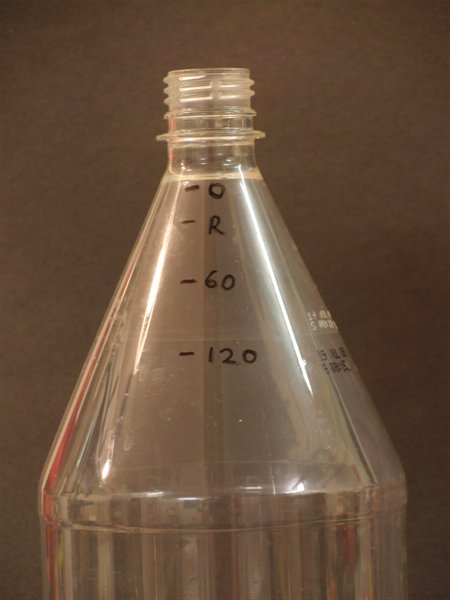

Marks indicating water level drop in bottle when bottle is pressurised. See volume change below

Data

Parameter Value Units Notes Experiment
Burst Pressure
pressure 165 psi Averaged value from experiment:  091114_001
Capacity
volume 2000 mL Labelled 090906_001
  2092 mL Actual - unpressurised 090906_001
  +50 mL @ 60 psi 090920_001
  +128 mL @ 120 psi 090920_001
  +11 mL @ 0psi after pressurised to 120psi 090920_001
Weight
weight 55 grams No label, cap or cap ring 090906_001
Dimensions
height 312 mm Unpressurised 090906_001
  +2 mm @ 60 psi 090920_001
  +6 mm @ 120 psi 090920_001
diameter (OD) 110.5 mm Unpressurised (middle) 090906_001
  111.2 mm @ 60 psi (middle) 090920_001
  112.7 mm @ 120 psi (middle) 090920_001
circumference 352 mm Unpressurised (top) 090906_001
  347 mm Unpressurised (middle) 090906_001
  353 mm Unpressurised (bottom) 090906_001
  +2.5 mm @ 60 psi (middle) 090920_001
  +7 mm @ 120 psi (middle) 090920_001
Miscellaneous
Material PET
Colour Clear
